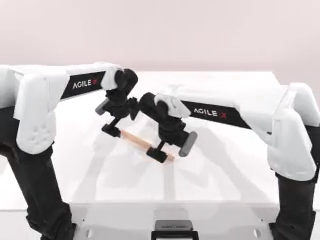

Reference frame
Grab roller

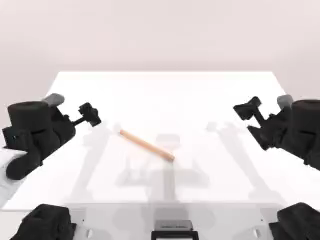

First recorded simulator frame.
Seeing is not following.
Do robotic world models really follow actions?
Diagnosing and aligning action-conditioned generation for policy learning.
arXiv:2608.24885 · August 2026
1 State Key Laboratory of Multimedia Information Processing, School of Computer Science, Peking University
2 Beijing Innovation Center of Humanoid Robotics
4 University of Electronic Science and Technology of China
5 Nanyang Technological University
6 The Chinese University of Hong Kong
Action-conditioned world models are increasingly used as learned simulators for policy evaluation and improvement, yet their effectiveness rests on an unverified assumption: generated futures faithfully reflect arbitrary valid actions. Existing benchmarks are typically confined to expert demonstrations, leaving off-expert action following inadequately evaluated. To address this gap, we introduce WorldEcho, which probes action following over a broader action distribution using visual integrity and SE(3) trajectory alignment. Our diagnosis shows that current world models reasonably execute expert actions but struggle with diverse off-expert trajectories, either ignoring the commanded actions or producing visually invalid rollouts. We further propose WorldSync, which strengthens action following along three complementary axes: distributional coverage, representational grounding, and intervention-effect alignment. It broadens the training distribution over action consequences, grounds intermediate video representations in action-induced robot dynamics through an Action-Forcing Expert, and aligns predicted changes under action interventions with the corresponding changes in ground-truth futures. Experiments on RoboTwin benchmarks and real-robot tasks show that WorldSync improves WorldEcho metrics and serves as a more reliable simulator for iterative policy improvement, enabling policies to achieve higher success rates.
Part I / The action-following problem
An action-conditioned world model should follow the commanded motion. Compare the simulator with two observed failure modes: visual collapse, where robot geometry breaks down, and action mismatch, where a plausible video moves the wrong way.
Grab roller
First recorded simulator frame.
Scroll horizontally to compare all three videos.
The simulator reference for the recorded action query.
Robot geometry breaks, blurs, or disappears under the query.
The video looks plausible, but its end-effector motion disagrees.
Input shows the first recorded simulator frame; the clips do not include numerical action inputs. Model outputs 1 and 2 identify the two examples, not separate model identities.
To quantify these failures, we introduce WorldEcho, a benchmark for action following beyond expert replay. It checks both whether a generated future is visually valid and whether the robot motion agrees with the consequences of the commanded actions.
Its five query types span demonstrated actions, cross-state replay, local perturbations, policy rollouts, and feasible-space sampling. For each query, WorldEcho compares model and simulator futures from the same initial state and action sequence, jointly assessing visual integrity and SE(3) end-effector alignment.

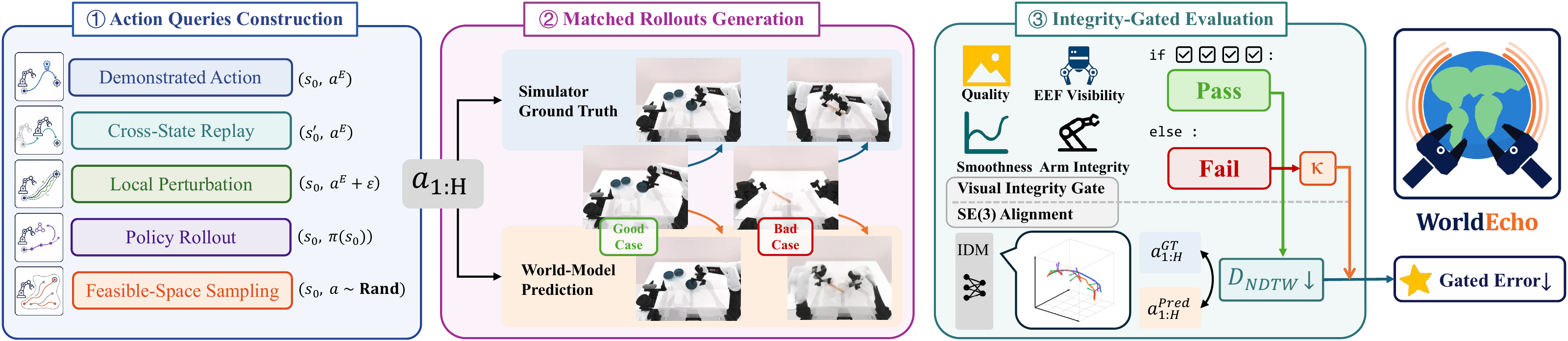

Figure 3 · WorldEcho benchmarkVisual integrity gate
Quality, temporal smoothness, end-effector visibility, and arm integrity must all pass.
Trajectory alignment
AnyPos recovers both end-effector trajectories; pose-aware NDTW compares them in SE(3).
Integrity-gated score
Valid rollouts use trajectory error; visually invalid rollouts receive a fixed penalty.

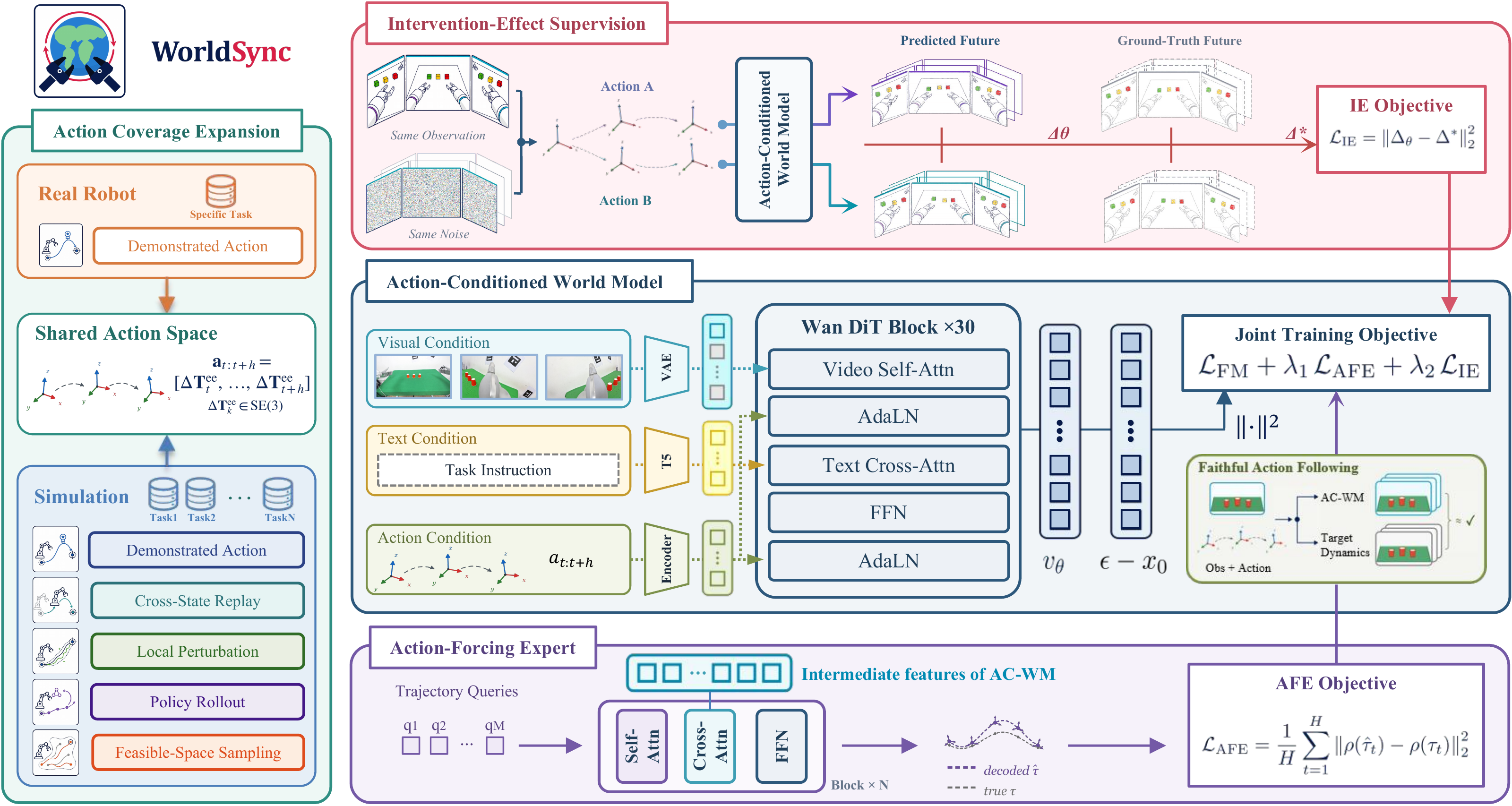

Guided by the WorldEcho diagnosis, WorldSync trains the world model to improve action following through expanded action coverage, auxiliary Action-Forcing Expert supervision, and intervention-effect alignment.
Coverage
Mix diverse simulated expert and off-expert trajectories with target-domain real expert data in a shared relative Cartesian action space.
Grounding
Decode future end-effector trajectories from intermediate video features so the representation encodes action-induced robot dynamics.
Sensitivity
Pair the same observation with different actions and match the change in predicted futures to the change in ground-truth futures.
WorldEcho / Leaderboard
Compare action following and visual integrity across 50 RoboTwin tasks. Ranked by integrity-gated error, with raw trajectory error and visual pass rate alongside.
50 tasks 7 models
Protocol & results ↗Scroll horizontally to compare all metrics.
| Rank | Model | Training data | Gated error ↓ | Raw NDTW ↓ | Visual pass (%) ↑ |
|---|---|---|---|---|---|
| Rank 1 | Expanded60k updates | 0.0661 | 0.0223 | 84.51 | |
| Rank 2 | Expert20k updates | 0.0716 | 0.0266 | 83.89 | |
| Rank 3 | Expert20k updates | 0.0805 | 0.0210 | 78.97 | |
| Rank 4 | Expert20k updates | 0.0894 | 0.0190 | 75.09 | |
| Rank 5 | Expert20k updates | 0.1116 | 0.0548 | 75.09 | |
| Rank 6 | LingBotVA |
Expert20k updates | 0.1148 | 0.0473 | 71.83 |
| Rank 7 | Expert20k updates | 0.1432 | 0.0572 | 63.94 |
Logos identify the lead institution, developer, or parent organization. Model links open the full project credits.
Published task-macro averages over 50 RoboTwin tasks. Baselines use expert demonstrations (20k updates); WorldSync uses expanded action coverage (60k updates). Training data and budgets differ. Expanded baseline results remain in the full paper.
WorldEcho / Evaluation coverage
WorldEcho broadens evaluation with four complementary off-expert query types, covering state–action combinations beyond expert demonstrations.
Move over a point cloud or density region to highlight its category. Move away to restore all. You can also select a category below.
Single-task example: Adjust bottle · 50 samples per category · 250 points. Each point combines the current robot state and an action sequence, projected into two dimensions with PCA. Dashed outlines mark 95% highest-density regions (HDR); off-expert coverage is the union of the four category regions.
WorldSync / Interactive preview
Choose a scene and draft commands for either arm. Explore the controls here before live world-model inference is connected.
No commands yet. Choose an arm and use the controls to start.
Drafted change UI axes
Focus these controls to use the keys. Each press adds one command. X / Y / Z are preview axes; no robot motion is executed.
Ready to draft. No model is connected.
